EZ53


Tracked Zero Tail Excavator

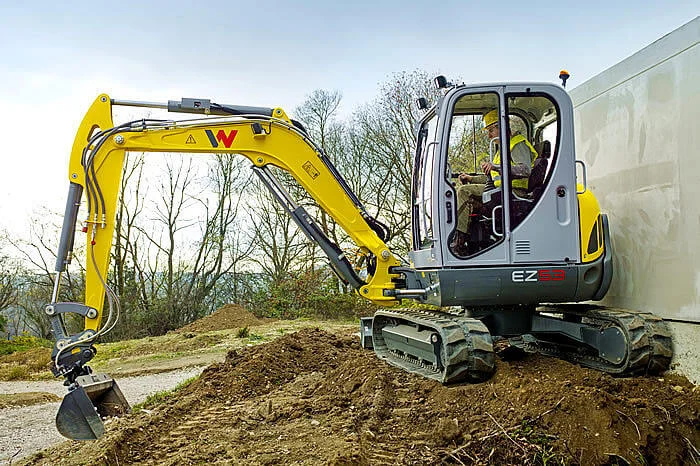

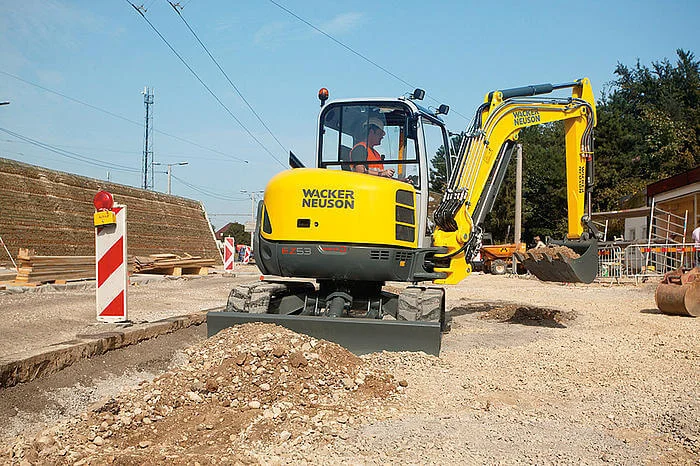

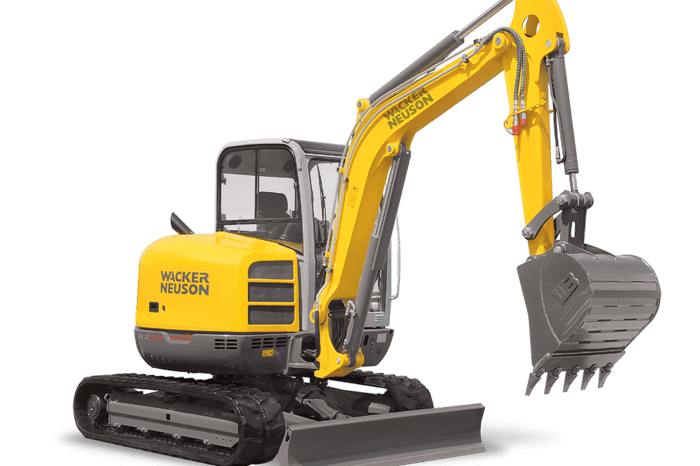

The EZ53 compact excavator combines the performance of a conventional track excavator with the excellent maneuverability of a zero tail swing machine. When revolved, the tail of the EZ53 does not project over the width of the tracks. Powered by an economical Tier 4 Final Perkins engine, this unit offers rubber tracks, dozer blade, boom mounted working light and control pattern change system. The excavator is offered in a canopy or full cab version each with a short or longer dipperstick. Cab models feature standard air conditioning.

Product availability can vary from country to country. It is possible that information / products may not be available in your country.


Details

  • Zero tail swing and compact dimensions are ideal for working in confined areas
  • Large operator station is ergonomically designed for easy access and operator comfort improving productivity
  • Unit equipped with pattern control selector for versatility and ease of use
  • Tiltable operators platform allows for easy accessibility to all maintenance components
  • Optional Vertical Digging System (VDS): It enables progressive tilting of the superstructure by up to 15° to compensate for slopes up to 27%

VDS - Vertical Digging System Schema

VDS - Vertical Digging System

VDS enables progressive tilting of the superstructure by up to 15° with the push of a button, allowing the operator to compensate for slopes up to 27%. This makes precise vertical digging possible even on the most uneven of terrain. Cost-effectiveness and user comfort thus get a considerable boost.


Operating data
Shipping weight min. 10,937 lb
Operating weight 11,539 - 14,178 lb
Biting force max. 6,295 lbf
Breakout force max. 8,565 lbf
Digging depth max. 147.7 in
Dumping height 144.8 - 155.2 in
Dump height max. 155.2 in
Digging radius max. 245.4 in
Superstructure slewing speed 9.2 rev/min
L x W x H 216.5 x 78.3 x 101.3 in
Engine / Motor
Engine / Motor manufacturer Perkins
Engine / Motor type 404F-22T
Engine / Motor Water-cooled 4-cylinder diesel engine EPA III
Displacement 135.2 in³
RPM / speed 2,440 rpm
Engine performance acc. to ISO 58.9 hp
Battery 88 Ah
Fuel tank capacity 21.9 US gal
Hydraulic system
Duty pump Double variable- & two-gear pump
Flow rate 41.6 US gpm
Operating pressure for working and traction hydraulics 3,336 psi
Operating pressure Slewing gear 2,756 psi
Hydraulic oil tank 19.3 US gal
Undercarriage
Travel speed max. 2.9 mph
Chain width 15.7 in
Ground clearance 12.7 in
Dozer Blade
Width 78.3 in
Height 15 in
Stroke - Above ground 16.3 in
Stroke - Below ground 17.9 in
Sound level
Sound level (LwA) acc. to 2000/14/EC 94 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394 78 dB(A)
