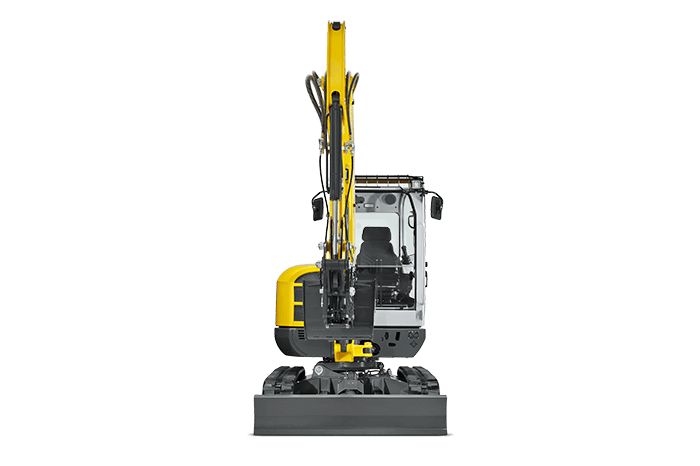

EZ38

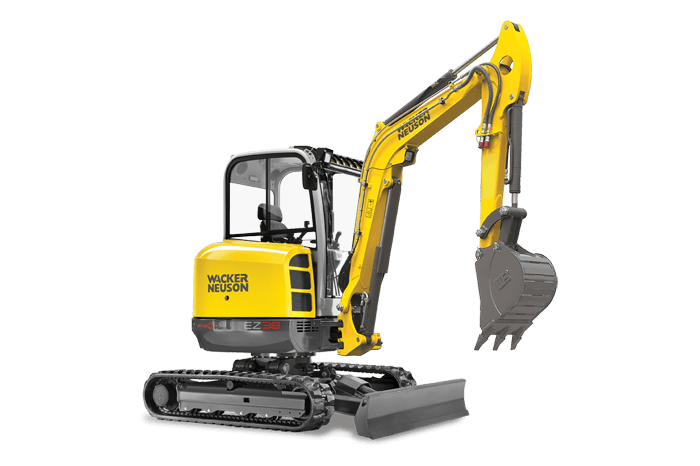

Tracked Zero Tail Excavator

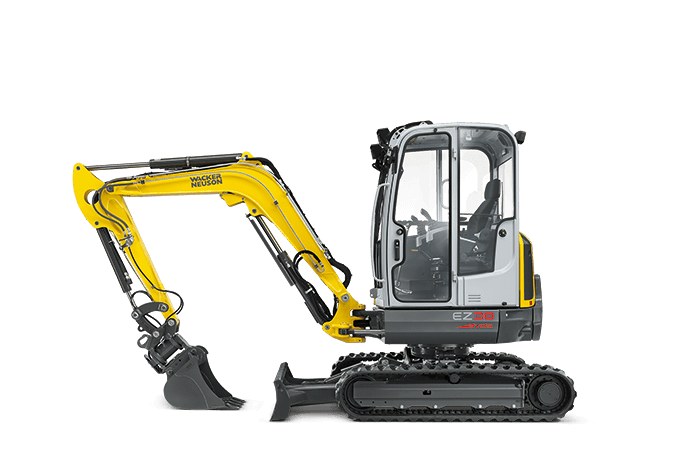

This compact excavator combines the performance of a conventional track excavator with the excellent maneuverability of a zero tail swing machine. When revolved, the tail does not project over the width of the tracks. Offering excellent service accessibility with the tilting operator platform, plus the comfortable and ergonomically designed operating environment improves productivity. This excavator is available in a canopy or full cab version, each with a choice of short and longer dipperstick. Cab models feature standard air conditioning. Powered by the economical Yanmar 3-cylinder diesel engine, the EZ38 track excavator offers rubber track, dozer blade, boom mounted working light and a control pattern change system.

Product availability can vary from country to country. It is possible that information / products may not be available in your country.


Details

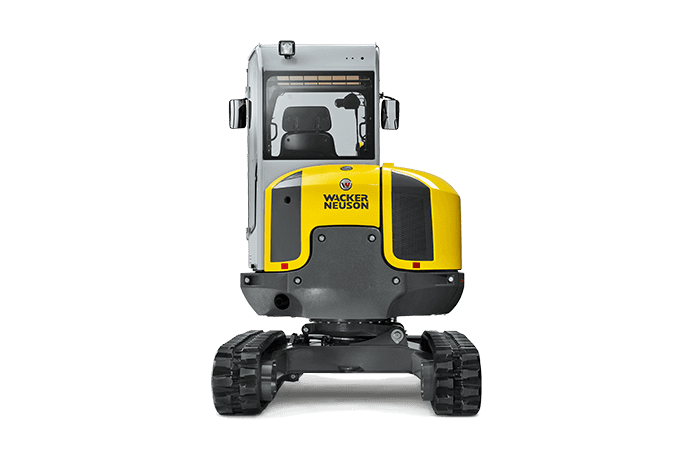

  • Zero tail swing for working in confined spaces

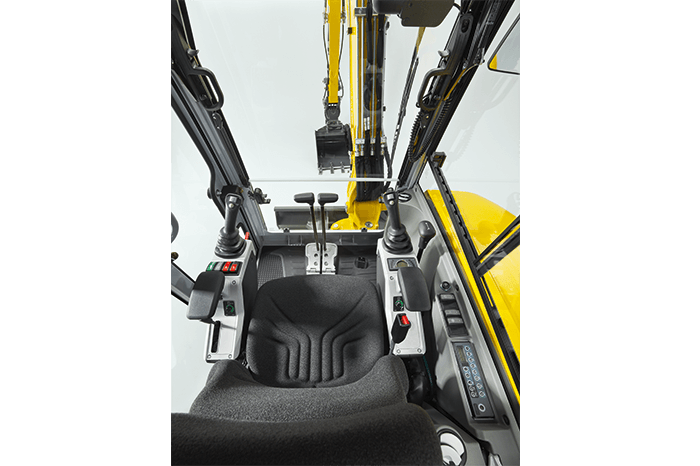

  • Large operator station for easy access and operator comfort. Adjustable armrests and seat provide the operator with an ergonomic and comfortable working environment.

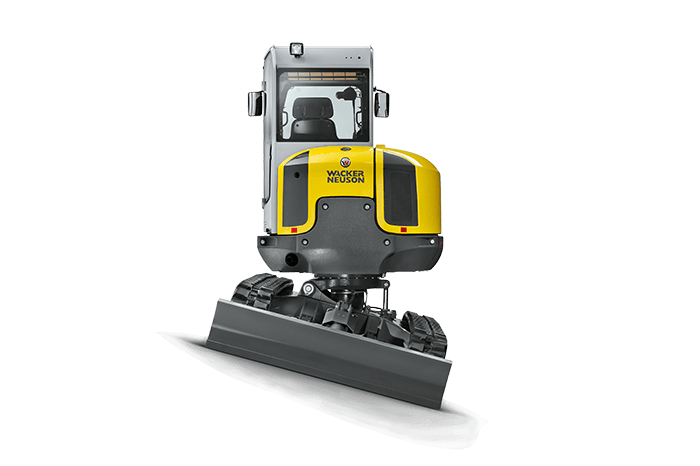

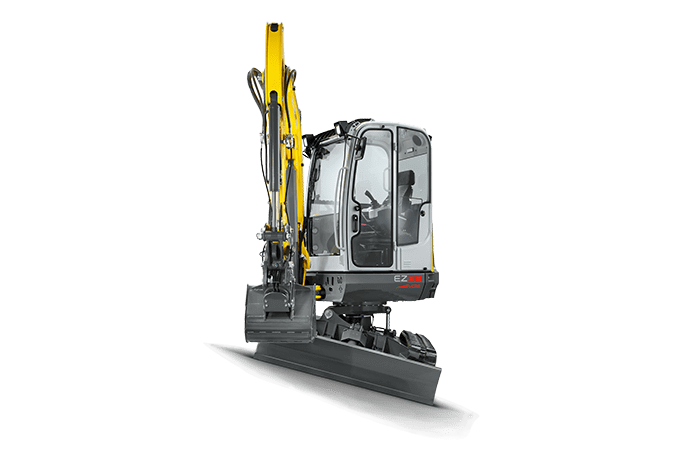

  • Optional Vertical Digging System (VDS): It enables progressive tilting of the superstructure by to 15° to compensate for slopes up to 27%
  • Unit equipped with pattern control selector valve for versatility and ease of use.

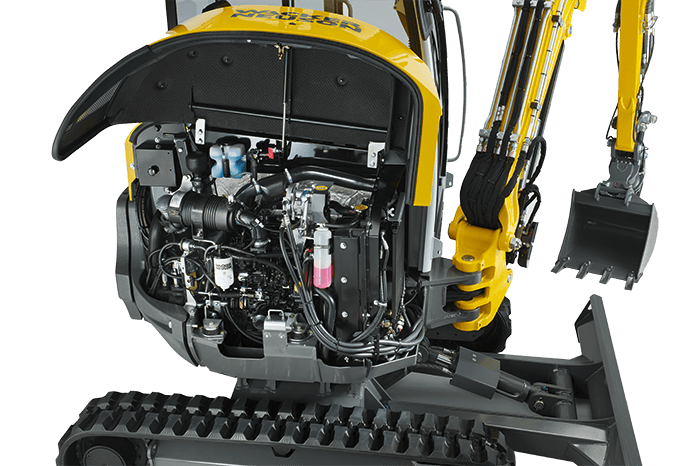

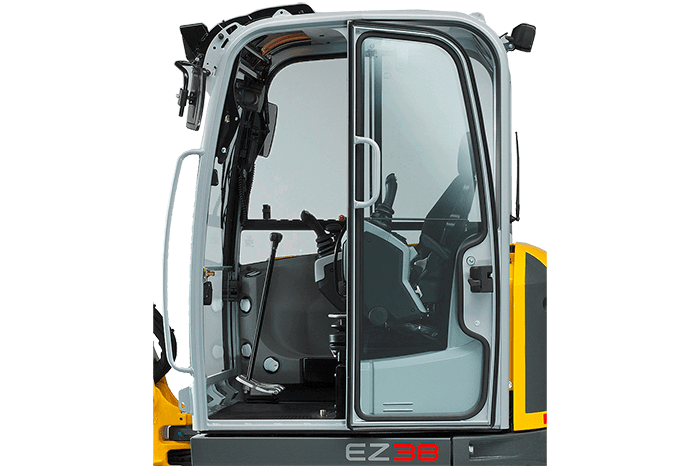

  • Tiltable cabin for easy accessibility to all maintenance components.

Operating data
Shipping weight min. 7,897 lb
Operating weight 8,274 - 9,863 lb
Biting force max. 4,002 lbf
Breakout force max. 7,194 lbf
Digging depth max. 132.2 in
Dumping height 130.6 - 138.4 in
Dump height max. 138.4 in
Digging radius max. 217.9 in
L x W x H 188.9 x 68.5 x 98.4 in
Engine / Motor
Engine / Motor manufacturer Yanmar
Engine / Motor type 3TNV88F
Engine / Motor Water-cooled 3-cylinder diesel engine
Displacement 100.2 in³
RPM / speed 2,400 rpm
Engine performance acc. to ISO 24.4 hp
Battery 74 Ah
Fuel tank capacity 11.6 US gal
Hydraulic system
Duty pump Double variable- & two-gear pump
Flow rate 30.1 US gpm
Operating pressure for working and traction hydraulics 3,481 psi
Operating pressure Slewing gear 3,041 psi
Hydraulic oil tank 10.2 US gal
Undercarriage
Travel speed max. 2.7 mph
Chain width 11.8 in
Ground clearance 11 in
Dozer Blade
Width 68.5 in
Height 13.6 in
Stroke - Above ground 15.4 in
Stroke - Below ground 17.7 in
Sound level
Sound level (LwA) acc. to 2000/14/EC 95 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394 77 dB(A)
