Yanmar Tractor


EZ17


Tracked Zero Tail Excavator

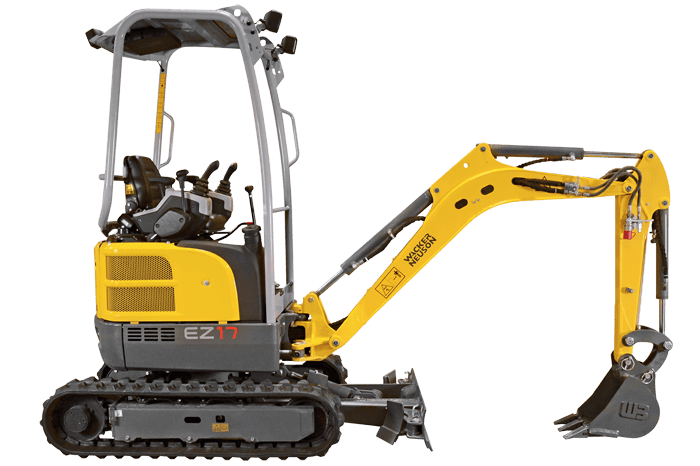

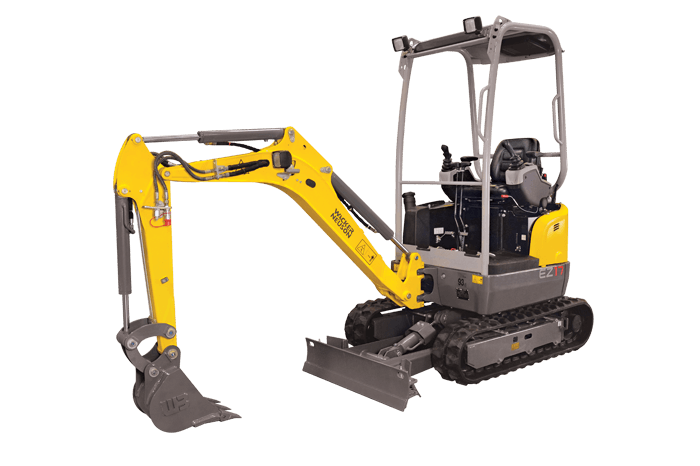

The EZ17 compact excavator is the best performing zero tail model in its class. The EZ17 is powered by a Tier 4 Final engine that offers excellent power, fuel economy and quiet operation. The EZ17 is the smallest zero tail excavator from Wacker Neuson combining a compact design, expandable undercarriage and 2- speed drive. The EZ17 provides maximum maneuverability and accessibility while still delivering an excellent digging depth and powerful bucket breakout force. The expandable undercarriage is adjustable to travel through narrow passages and low ground pressure protects existing landscaping.

Product availability can vary from country to country. It is possible that information / products may not be available in your country.


Details

  • Load sending system (LUDV) offers smoother operation and improved performance when using multiple functions.

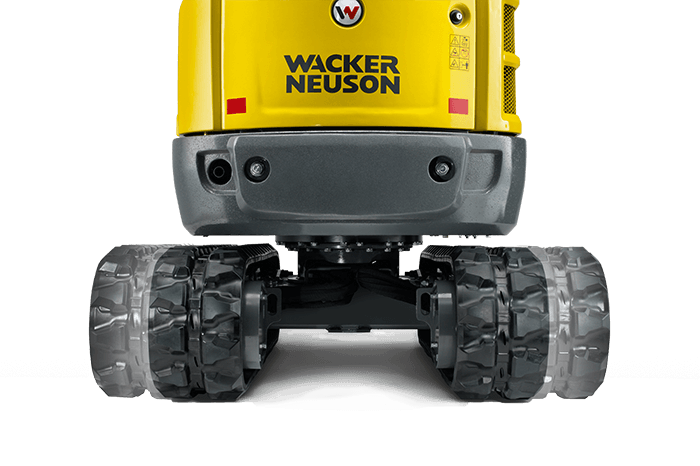

  • A telescopic undercarriage can be extended from 39" to 51" for greater lifting power and stability.
  • 2-speed drive offers travel speeds up to 2.9 mph.
  • Pattern control changeover allows for ISO and SAE operation.
  • Positioning of boom cylinder on top of the boom offers great boom and hose protection.

Operating data
Shipping weight min. 3,516 lb
Operating weight 3,801 - 4,299 lb
Biting force max. 2,046 lbf
Breakout force max. 4,204 lbf
Digging depth max. 97.9 in
Dumping height 95.9 - 100.4 in
Dump height max. 100.47 in
Digging radius max. 153.5 in
L x W x H 141.1 x 39 x 93 in

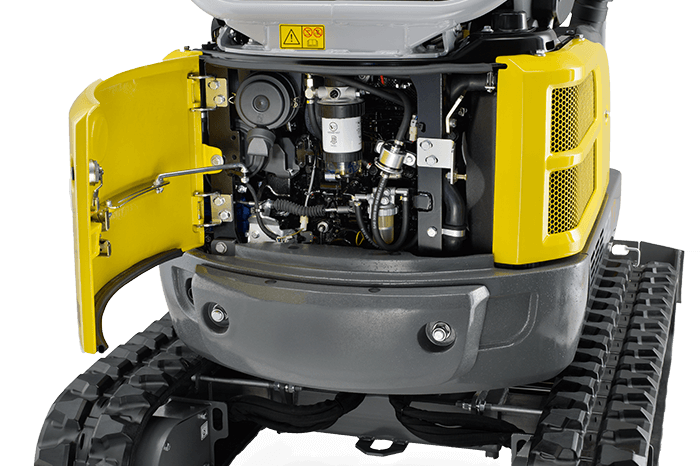

Engine / Motor
Engine / Motor manufacturer Yanmar
Engine / Motor type 3TNV80F
Engine / Motor Water-cooled 3-cylinder diesel engine
Displacement 77.2 in³
RPM / speed 2,200 rpm
Engine performance output to ISO 17.2 hp
Battery 30 Ah
Fuel tank capacity 5.8 US gal
Hydraulic system
Flow rate 10.5 US gpm
Operating pressure for working and traction hydraulics 3,481 psi
Operating pressure Slewing gear 2,176 psi
Hydraulic oil tank 5.6 US gal
Undercarriage
Travel speed max. 3 mph
Chain width 9.1 in
Ground clearance 6.3 in
Sound level
Sound level (LwA) acc. to 2000/14/EC 93 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB(A)
